ST100 Mini

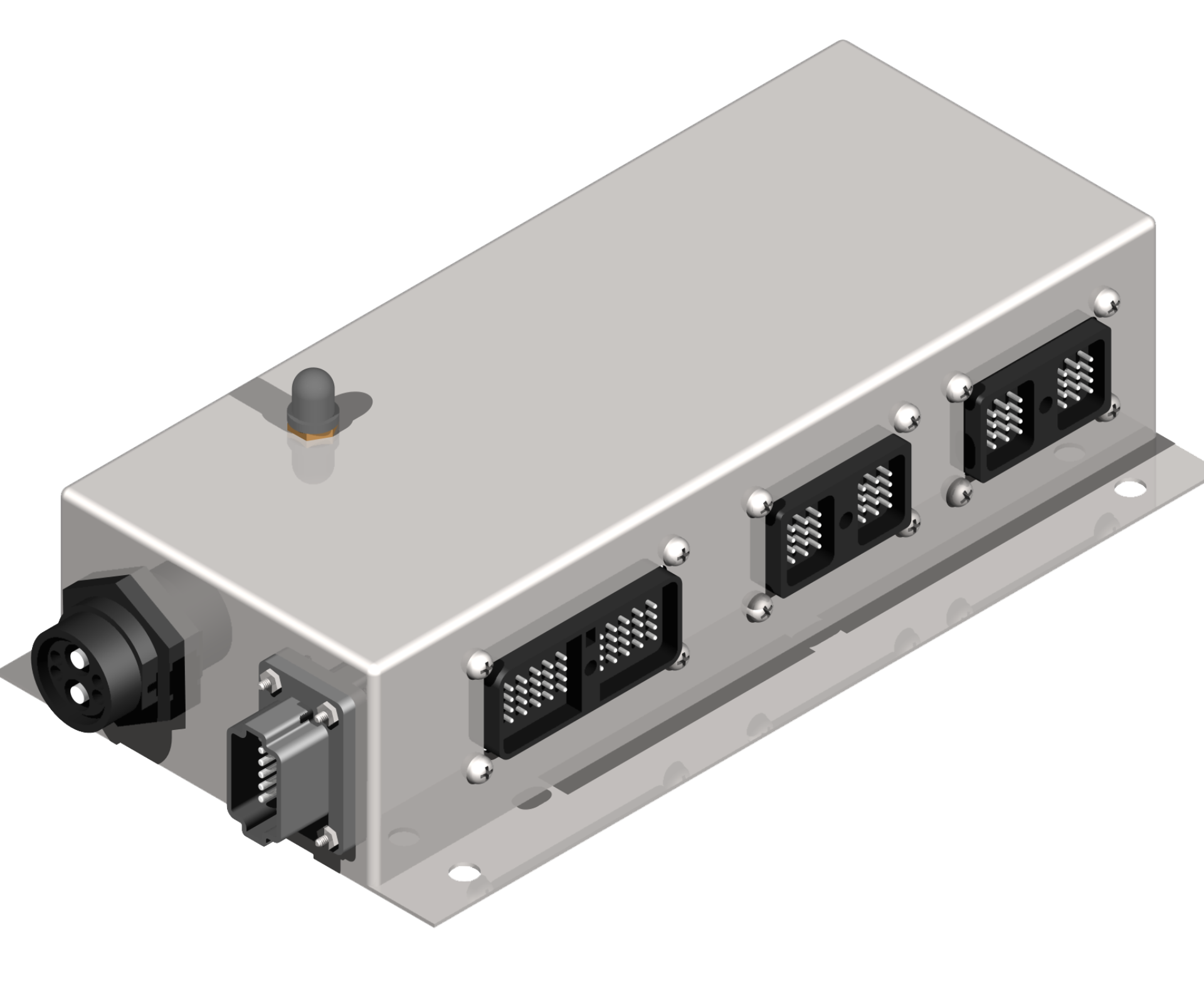

Valve and Lighting Interface Module Mini (XIM-Mini)
Click Image to Enlarge
The XIM Mini mounts in the Valve Compartment and is a stand-alone component which does not use a RIM. The XIM Mini has the following features: - 10 Programmable Lighting Drivers with Electronic Breakers - Conveyor Sensing - Gate Height Sensing - Pre-Wet Sensing and Purge Valve Control - Anti-Ice Sensing and Lane Controls for 3 Lanes - Power Connection - 4 way Front Plow Solenoid Drivers with Power Float Control - Conveyor, Spinner and Gate Solenoid Drivers - Pre-Wet and Anti-Ice Solenoid Drivers - System Breaker
Connection Detail Connection Detail Mounting Dimensions Mounting Dimensions
