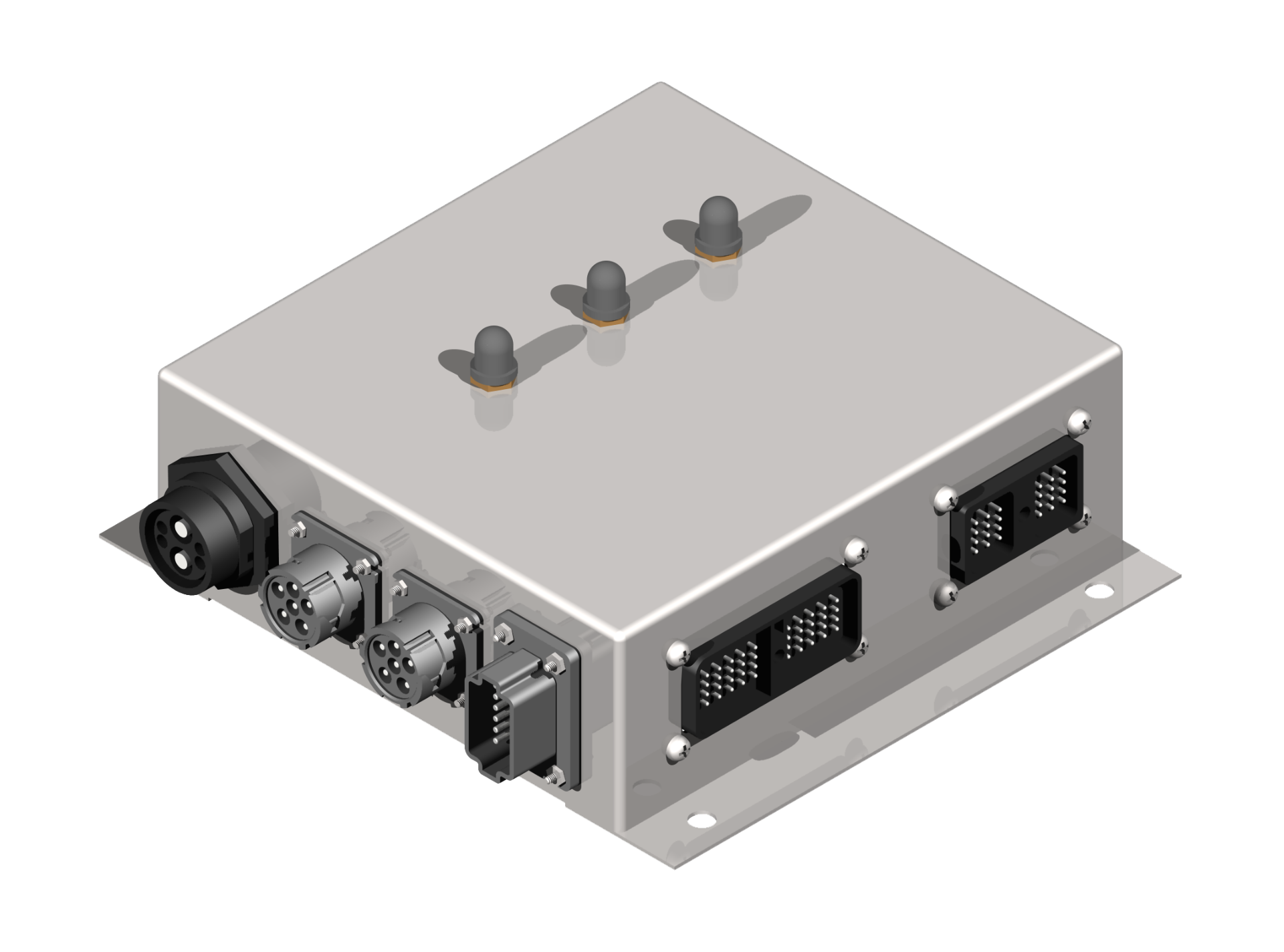

Valve and Lighting Interface Module Micro2 (XIM-Micro-2)
Click Image to Enlarge
The XIM Micro1 mounts in the Valve Compartment and is used in conjunction with the RIM Module and a Tow Plow Module. The XIM Micro 1 has the following features: - 10 Programmable Lighting Drivers with Electronic Breakers - Conveyor Sensing - Gate Height Sensing - Pre-Wet Sensing and Purge Valve Control - Anti-Ice Sensing and Lane Controls for 3 Lanes - Rim Connection - Tow Plow Connection - 4 way Front Plow Solenoid Drivers with Power Float Control - Conveyor, Spinner and Gate Solenoid Drivers - Pre-Wet and Anti-Ice Solenoid Drivers - System Breakers for Truck, RIM and Tow plow

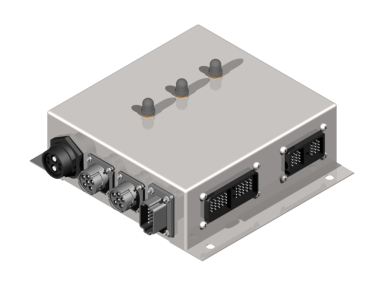

ST100 Micro2 Connection Detail Connection Detail Mounting Dimensions Mounting Dimensions
