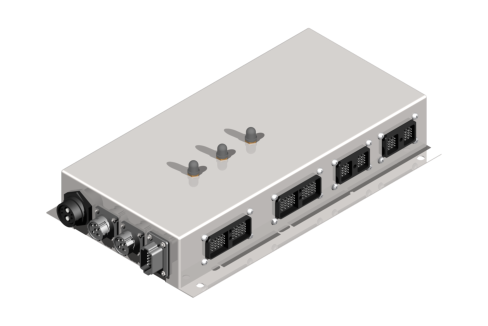

Valve and Lighting Interface Module (XIM-2)
Click Image to Enlarge
The XIM2 mounts in the Valve Compartment and is used with a RIM and a Tow
Plow. The XIM1 has the following features:
- 10 Programmable Lighting Drivers with Electronic Breakers
- Conveyor Sensing
- Gate Height Sensing
- Pre-Wet Sensing and Purge Valve Control
- Anti-Ice Sensing and Lane Controls for 3 Lanes
- Power Connection
- 4 way Front Plow Solenoid Drivers with Power Float Control
- Conveyor, Spinner and Gate Solenoid Drivers
- Pre-Wet and Anti-Ice Solenoid Drivers
- Dual Wing Plows, Under Body Plow and Pup Solenoid Drivers
- Tow Plow with Granular and Liquid Control
Valve and Lighting Interface Module (XIM-2)
Click Image to Enlarge
The XIM2 mounts in the
Valve Compartment and is
used with a RIM and a Tow
Plow. The XIM1 has the
following features:
- 10 Programmable Lighting
Drivers with Electronic Breakers
- Conveyor Sensing
- Gate Height Sensing
- Pre-Wet Sensing and Purge
Valve Control
- Anti-Ice Sensing and Lane
Controls for 3 Lanes
- Power Connection
- 4 way Front Plow Solenoid
Drivers with Power Float Control
- Conveyor, Spinner and Gate
Solenoid Drivers
- Pre-Wet and Anti-Ice Solenoid
Drivers
- Dual Wing Plows, Under Body
