Click on image to enlarge.

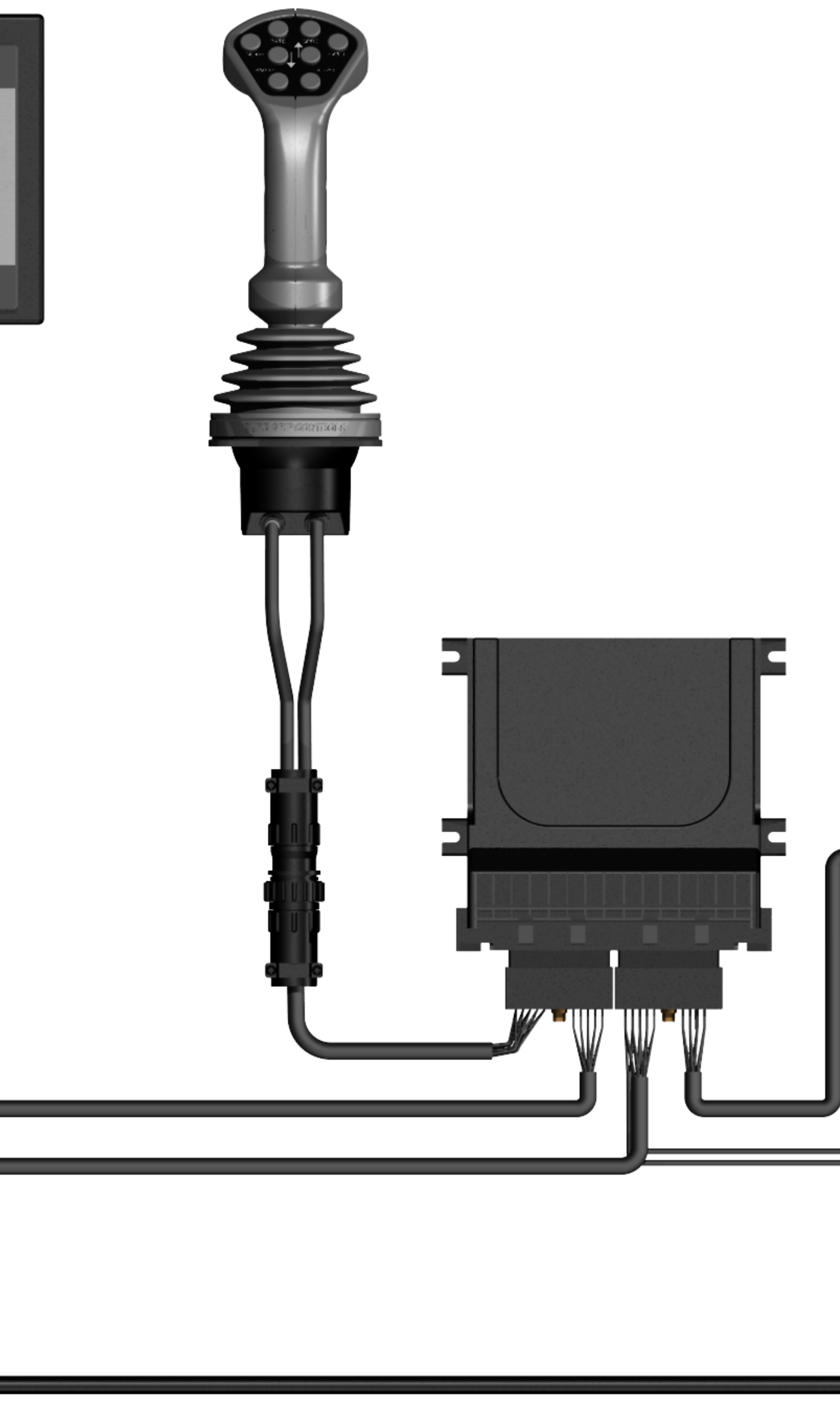

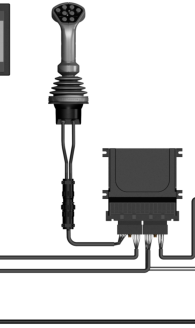

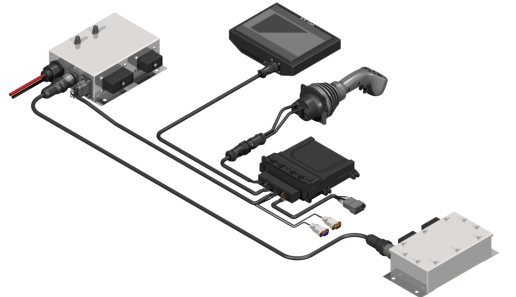

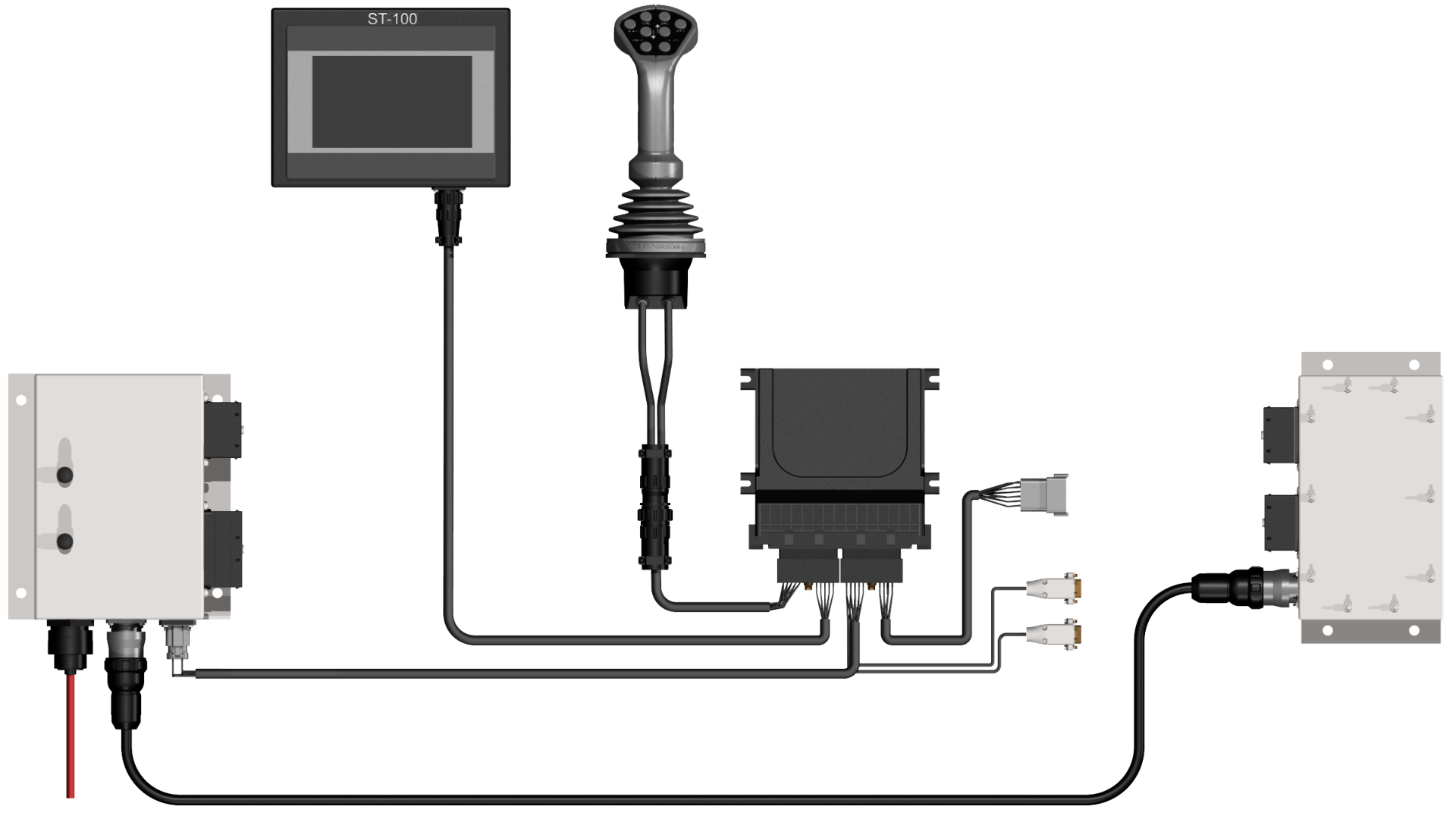

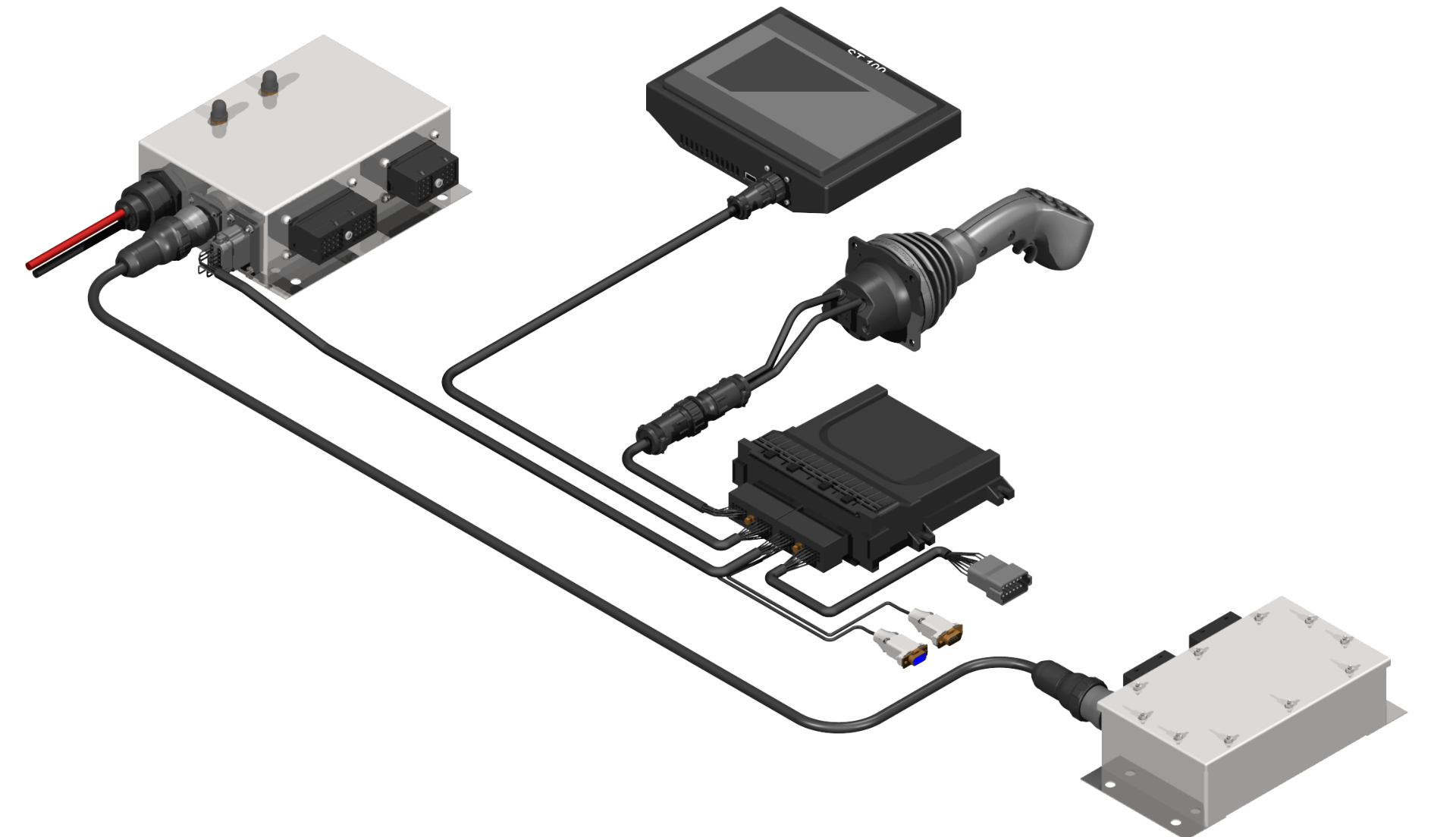

The ST-100-Micro-1 system for single plow operation with Rear Sensing, Anti-Ice Control and Pre-Wet Control. Full featured Granular and Liquid precision controlled application. - 20 Programmable Lighting Drivers with Electronic Breakers - Rear Conveyor Sensing - Rear Gate Height Sensing - Rear Pre-Wet Sensing and Purge Valve Control - Rear Anti-Ice Sensing and Lane Controls for 3 Lanes - Power Connection - 4 way Front Plow Solenoid Drivers with Power Float Control - Conveyor, Spinner and Gate Solenoid Drivers - Hoist Control with Level Sensor to Limit Box Angle - Pre-Wet and Anti-Ice Solenoid Drivers - System Breaker and RIM Breaker - 8 Button Joystick with two way trigger - USB 2 Host Port for Reporting, Firmware Updates and Diagnostics - Adjustable Screen Brightness for Day or Night Operation - AVLS Connection - J1939 Truck Communications - ECM / TCM Control Outputs
