Integrated Snow and Ice Control Systems
ST-100-1 System
Click on image to enlarge.

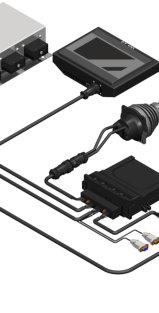

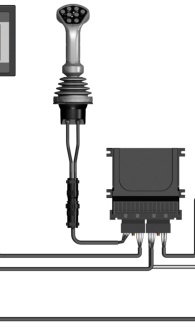

ST100 System 1 SE Photo ST100 System1 Photo

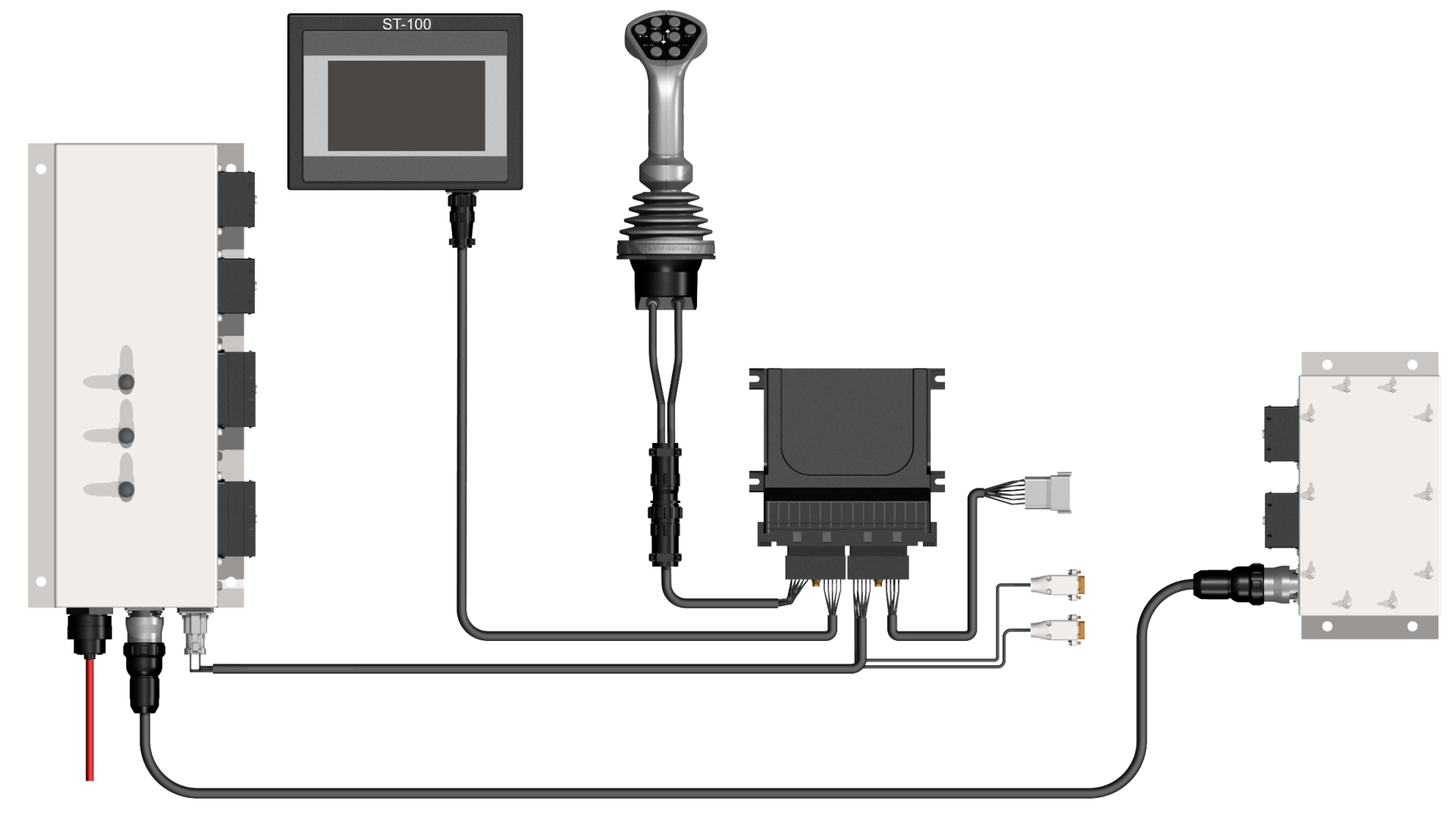

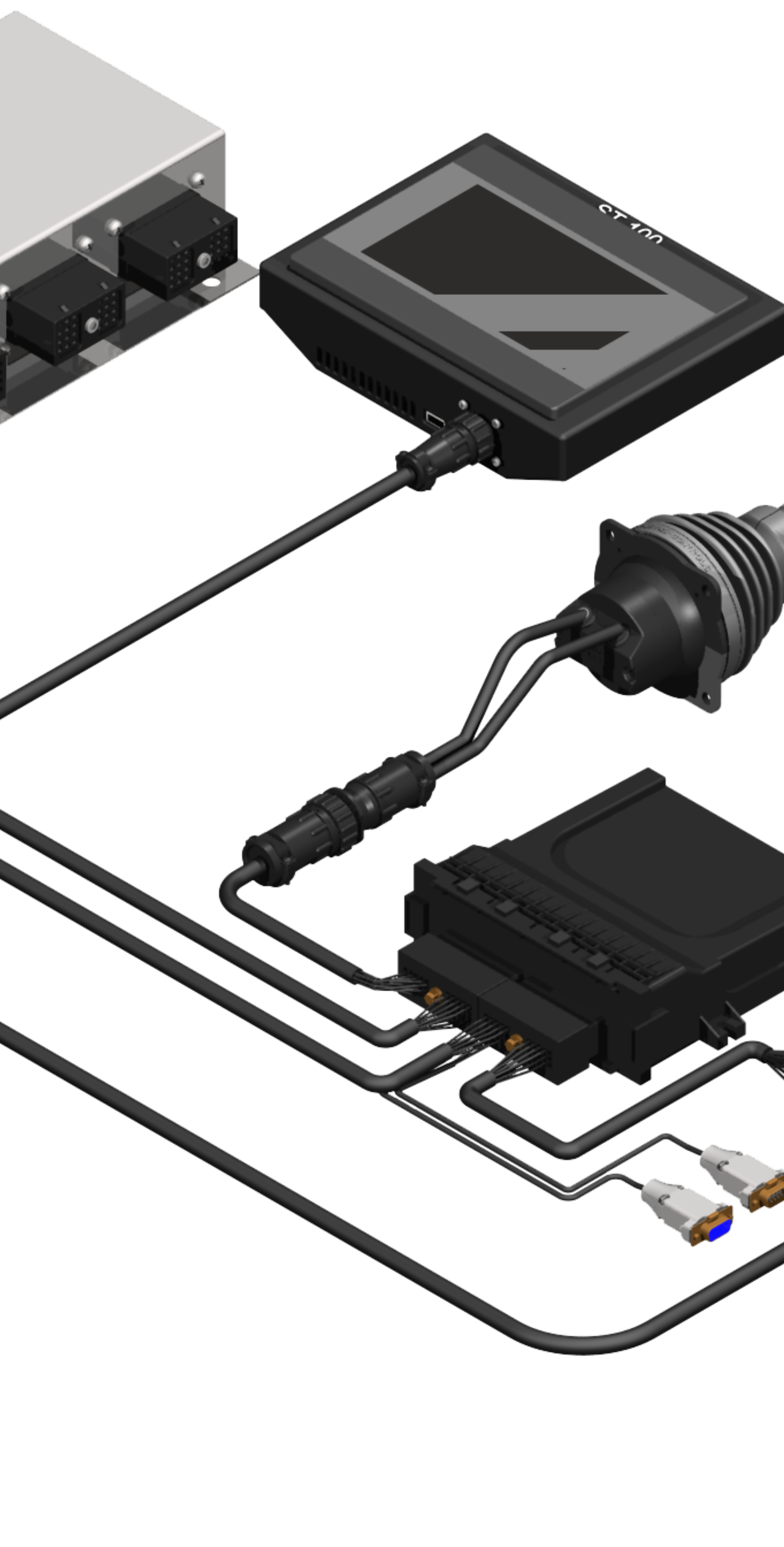

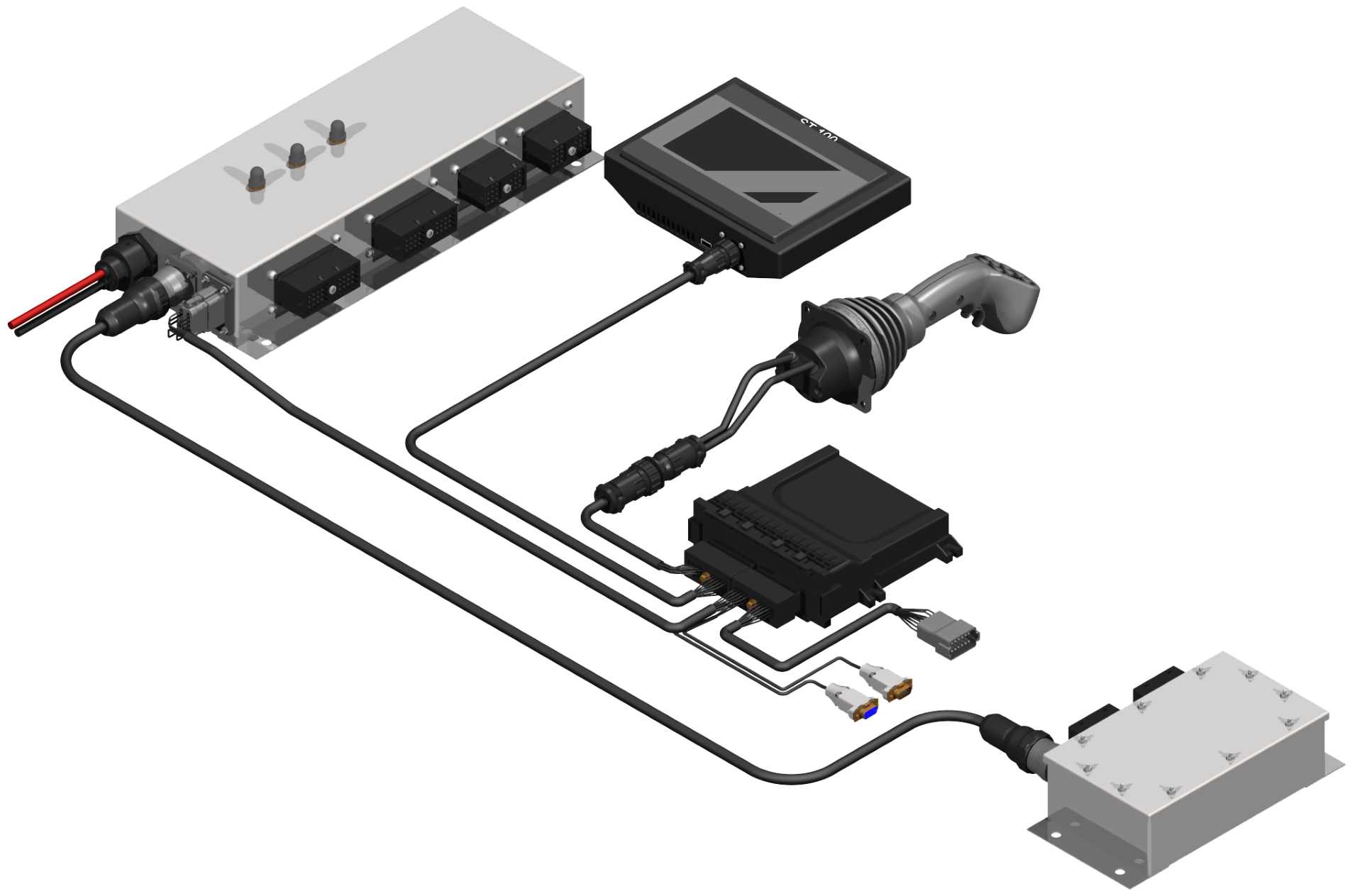

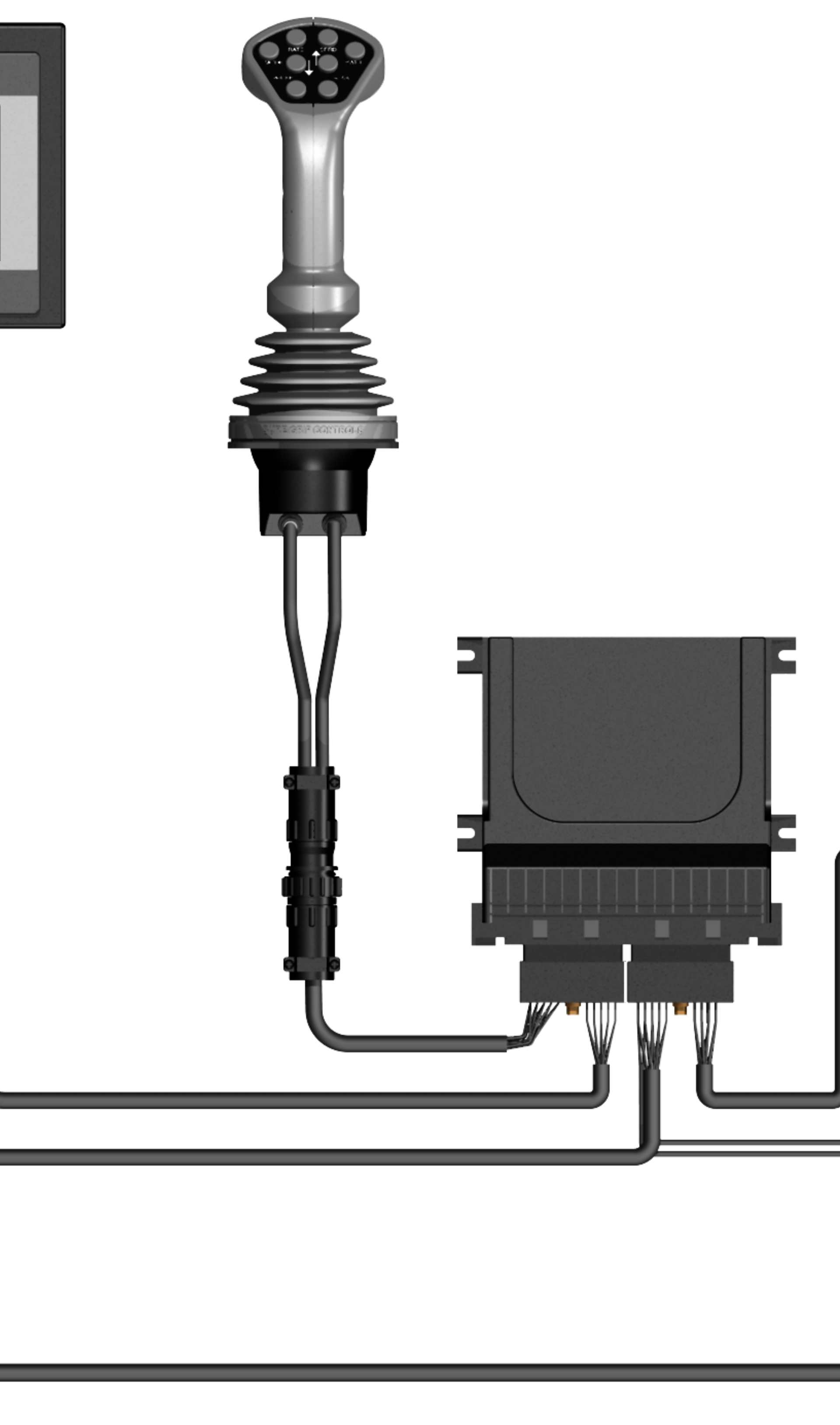

The ST-100-1 system for Multi Plow operation with Optional Rear Sensing, Anti-Ice Control and Pre-Wet Control. Full featured Granular and Liquid precision controlled application. - 20 Programmable Lighting Drivers with Electronic Breakers - Front and Optional Rear Conveyor Sensing - Front and Optional Rear Gate Height Sensing - Front and Optional Rear Pre-Wet Sensing and Purge Valve Control - Front and Optional Rear Anti-Ice Sensing and Lane Controls for 3 Lanes - Power Connection - 4 way Front Plow Solenoid Drivers with Power Float Control - Conveyor, Spinner and Gate Solenoid Drivers - Hoist Control with Level Sensor to Limit Box Angle - Pre-Wet and Anti-Ice Solenoid Drivers - System Breaker and RIM Breaker - 8 Button Joystick with two way trigger - USB 2 Host Port for Reporting, Firmware Updates and Diagnostics - Adjustable Screen Brightness for Day or Night Operation - AVLS Connection - J1939 Truck Communications - ECM / TCM Control Outputs
Rim and Cable Sold Separately
ST-100-DIM
ST-100-JOY
ST-100-CIM-2
ST-100-XIM-1
ST-100-RIM
