ST100 RIM

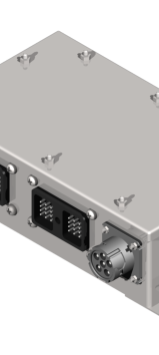

Rear Interface Module (RIM)
Click Image to Enlarge
The Rear Interface Module mounts on the Sander Body where the equipment is located. The RIM is connected to the CIM by a single cable eliminating multiple wires going over the hinge. The cable is available as a two part option to allow for a Bulkhead Connection at the Pintle Plate for slide out bodies. The Rear Interface Module has the following features: - 10 Programmable Lighting Drivers with Electronic Breakers - Conveyor Sensing - Gate Height Sensing - Pre-Wet Sensing and Purge Valve Control - Anti-Ice Sensing and Lane Controls for 3 Lanes - Box Level Sensing
Connection Detail Connection Detail Mounting Dimensions Mounting Dimensions
ST100 RIM

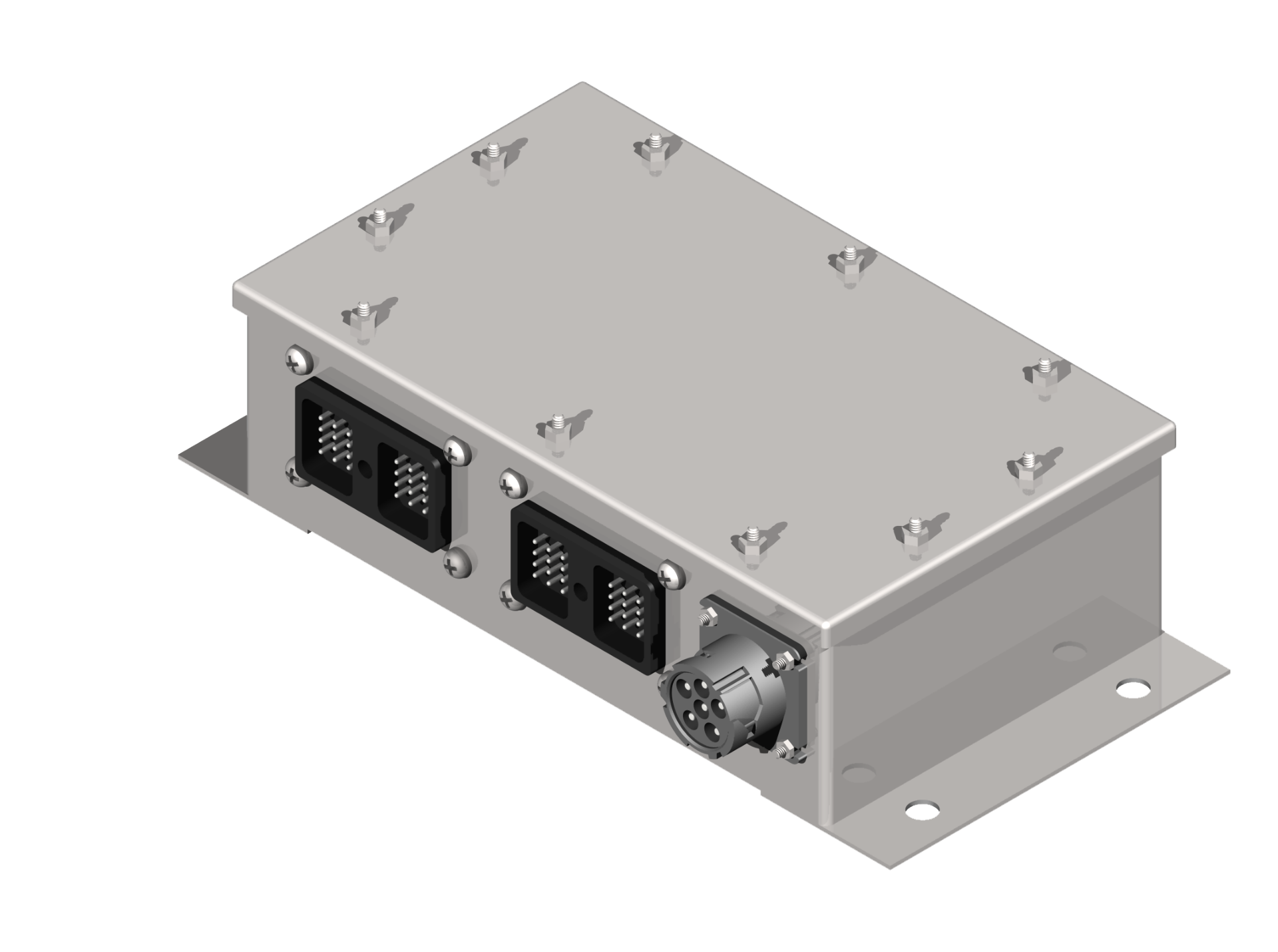

Rear Interface Module (RIM)
