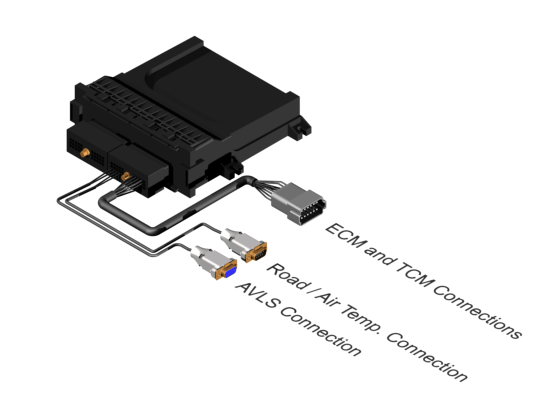

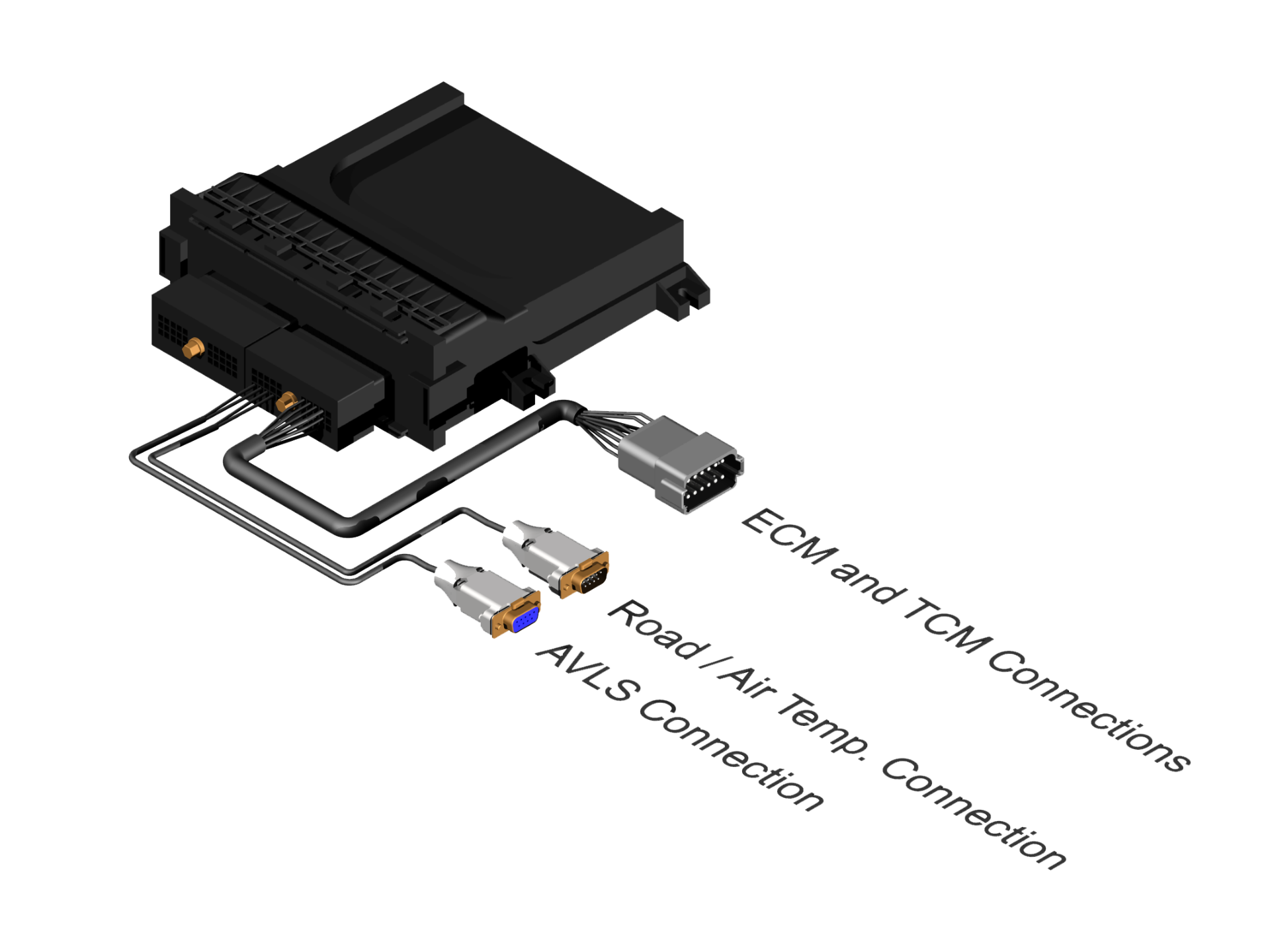

Cab Interface Module (CIM-2)
The Cab Interface Module (CIM) is the control system that
communicates with all the system devices. The Road / Ambient
Temperatures are read from an external module and the AVLS
Connects to the modem in the truck and is C.T.S. Compatible.
Programmable events such as Plow Down or Sander Engaged
cause the CIM to send signals to the Transmission Control Module
and Engine Control Module to limit the Gear or Vehicle Speed.
The CIM mounts best on a panel between the seats with the
connectors facing down.
- J1939 E.C.M. Communications in either 250kB or 500kB modes.
- 5 Programmable E.C.M. / T.C.M. Outputs for Speed and Gear Limits
- IP68 Rated Waterproof Enclosure keeps corrosion out.
- Easy 4 Screw Mounting for quick convenient installation.
- Compact Footprint to fit in the ever-shrinking cab space.
- Only Two Connectors easy to install and un-install.
